Early humans left subtle clues in fossil tracks and wear patterns, raising enduring questions about whether footwear existed in deep prehistory and how it shaped movement, protection, and survival.
By Dr. Erik Trinkaus
Professor Emeritus of Physical Anthropology
Washington University in St. Louis
By Dr. Tea Jashashvili
Assistant Professor of Clinical Integrative Anatomical Sciences
Keck School of Medicine
University of Southern California
By Dr. Biren A. Patel
Professor of Clinical Integrative Anatomical Sciences
Keck School of Medicine
University of Southern California
Abstract
As a framework for interpreting Pliocene and Pleistocene hominin footprints, the functional implications of australopith and Homo pedal remains are reviewed. Despite minor variations in pedal proportions and articular morphology, all of these remains exhibit tarsometatarsal skeletons fully commensurate with an efficient (human) striding bipedal gait. The Middle and Late Pleistocene Homo pedal phalanges exhibit robust and distally flattened metatarsal 1 heads, hallux valgus, relatively short lateral digits with largely straight proximal phalanges with dorsally oriented metatarsal facets, all similar to those of recent humans. The Pliocene and Early Pleistocene halluces lack hallux valgus and have bulbous metatarsal 1 heads.The australopith pedal remains have lateral proximal phalanges that are relatively long and dorsally curved and have more proximally oriented metatarsal facets. In addition, pre-Upper Paleolithic Homo lateral phalanges have robust diaphysis implying the habitual absence of protective footwear, whereas the Upper Paleolithic onesare variably gracile, especially at higher latitudes, indicating more consistent use of footwear. These paleontological considerations provide a framework for interpreting the distal portions of earlier hominin footprints (especially with respect to hallucal orientation and digital length) and suggest that many of the Late Pleistocene footprints may be unrecognized given the use of footwear.
Introduction
The human lineage has evolved a pedal anatomy that facilitates an efficient striding bipedal gait. As the interface between the body and the substrate during gait, it is also the portion of the anatomy which is primarily responsible for the form and variation in footprints. Given that hominins have had a basically bipedal pelvic and leg anatomy since at least the early members of Australopithecus (Ward 2013), it is likely that variation in footprints would reflect a complex combination of pedal anatomy and the behaviours imposed on the foot. This short review is therefore intended to provide an overview of Pliocene and Pleistocene human pedal anatomy and variation, with respect to their implications for assessing footprints from the past. Particular focus is placed on the pedal digits, given the stability of the human tarsometatarsal skeleton once it became basically humanlike (or bipedal) in the earlier Pliocene (DeSilva et al.2019).
The paleontological record for human foot evolution consists of isolated remains and a dozen partial pedal skeletons for the earliest phases, several of uncertain taxonomic affiliation. Middle Pleistocene associated feet derive from Dinaledi and Atapuerca-SH, there are half a dozen largely complete Middle Paleolithic pedal skeletons and then a relative abundance of them in the Upper Paleolithic. Only in the Middle and Upper Paleolithic, plus one Australopithecus specimen, are the pedal remains from associated skeletons. Therefore, for the Pliocene and Early Pleistocene, overall pedal anatomy is based on composites, often from diverse sites, whereas the later periods permit assessments from single individuals (De Silvaet al.2019; Fig.7.1). Isolated remains nonetheless fill out the record. The pedal remains from Aramis, Burtele and Liang Bua are not considered here, given their divergent configurations and their lack of association with footprints.
Individual points are not referenced in the discussion. For overall assessments, some of the key or more complete specimens and key aspects of the discussion, see Latimer et al. (1982), Susman (1983), Trinkaus (1983, 2005), Lordkipanidze et al. (2007), Zipfel et al. (2011), Ward (2013), Trinkaus et al. (2014, 2017), Harcourt-Smith et al. (2015), Trinkaus and Patel (2016), Pablos et al. (2017), Fernรกndez et al. (2018), McNutt et al. (2018) and DeSilva et al. (2019). For the earlier phases, DeSilva et al. (2019) provide an extensive review; for the later phases, see especially Trinkaus (1983), Trinkaus et al. (2014, 2017) and Pablos et al. (2017).
The Tarsometatarsal Skeletons
The tarsometatarsal (TMT) skeletons of all of these hominins indicate pedal structures that are similar to those of habitually unshod recent humans. They have compact and mediolaterally compressed posterior tarsals, with the calcaneal tuberosity largely in line with the talar trochlea. They have low talar neck angles. The australopiths have large naviculocuboid facets, possibly reflecting modestly greater midtarsal mobility, but they are reduced to absent in Homo tarsals. All of them have fully adducted hallucal metatarsals despite some variation in angulation when the skeletal elements are articulated. The adduction is reflected in tarsometatarsal 1 articular orientations and the occasional metatarsal (MT) 1-2 facets; the mediolaterally curved and distally convex TMT-1 facets of some remains enhanced joint stability and were not abduction. They had fully formed longitudinal and transverse pedal arches, indicated by MT torsion (especially for rays 3 and 4) and oblique and horizontally oriented TMT articulations (especially for rays 3โ5). In combination with the pedal arches, the metatarsophalangeal (MTP) articulations have mediolaterally oriented axes of rotation; for the MT-1, this resulted in perpendicular proximal and distal articular axes of rotation, permitting effective dorsiflexion at heel-off.
In this context, there was a variation in the degree of MT-1 medial divergence, overall pedal proportions, the relative sizes of articulations and other details of articular facets. It remains unclear to what extent these variations reflect body size (especially between australopiths and Homo), body proportions (especially ecogeographically in Middle and Late Pleistocene Homo), musculoskeletal hypertrophy and the effects of the presence/absence of habitual footwear use. None of these variations would have affected the basic kinesiology of the foot during a striding gait, beyond the considerable individual variation evident among recent humans.
The Hallux
In the context of adducted halluces, there are contrasts between earlier and later hominins in two aspects, the shape of the MTP articulation and the presence/degree of distal phalangeal lateral deviation (hallux valgus). Both have functional implications.

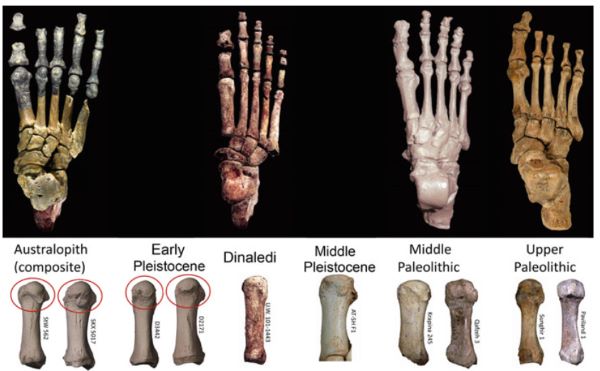

The MT-1 heads of most Middle and Late Pleistocene MT-1s are indistinguishable from those of recent humans in being relatively large and modestly distally convex, with varying degrees of distal angulation caused by different degrees of dorsal extension of the intersesamoid crest (Fig. 1). The articulation is evidently adapted for transmitting elevated axial joint reaction forces with only modest degrees of abduction-adduction and dorsiflexion-plantarflexion. The Dinaledi MT-1s are similar to the other later Pleistocene ones in shape, but they have relatively smaller articulations. In contrast, the australopith and initial Pleistocene Homo MT-1sexhibit mediolaterally and dorsoplantarly bulbous heads (Fig.7.1). Although fully compatible with predominantly axial joint reaction forces, their marked convexities imply increased mobility of the MTP-1 joint and/or increased joint stability relative to mediolateral forces on the distal hallux.

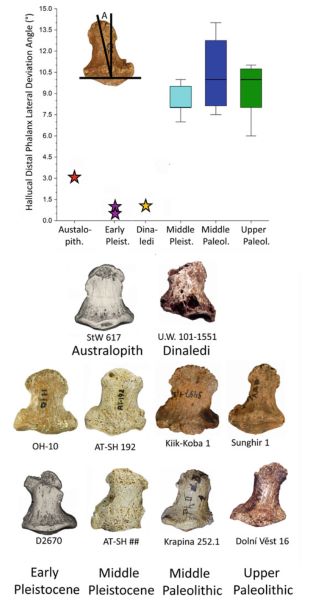

As a result of normal toeing-out during walking, most recent humans exhibit alateral deviation of the distal hallucal phalanx (DP-1), or hallux valgus. All of the known Late Pleistocene and the Middle Pleistocene Atapuerca-SH DP-1s exhibit asimilar lateral deviation (Fig. 2). In contrast, the few known DP-1s from australopiths, Early Pleistocene Homo and the Middle Pleistocene Dinaledi sample exhibit minimal lateral deviation of the DP-1. This is particularly evident in the complete OH-10 phalanx. Given that DP-1 lateral deviation is produced by differential medial versus lateral metaphyseal growth during development, from habitual forces on the hallux, the absence of this angulation in the earlier DP-1s implies little to no toeing-out among these hominins. Yet, at least OH-10 and the Dinaledi DP-1 exhibit axial torsion, which implies a humanlike toe-off.
The Lateral Metatarsophalangeal Articulations
During heel-off and the propulsive phase of a human stance, the ball of the foot and the toes are on the substrate, the pedal arch is raised and consequently the MTP articulations are substantially dorsiflexed. This distinctively human pedal posture has resulted, most prominently in recent humans, in a dorsal extension (or doming) of the metatarsal heads. The dorsal doming of the lateral metatarsal heads is present in all of the Middle and Late Pleistocene humans (including the Dinaledi remains). Additionally, the few Early Pleistocene Homo specimens appear to follow the recent human pattern. However, since this feature is variably present in the australopith MTs, it is unclear to what extent the australopith MTP articulations were habitually hyperdorsiflexed, as in a fully human heel-off.

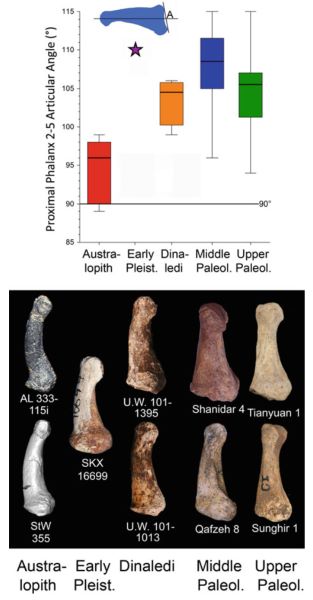

MTP dorsiflexion at heel-off also produces a proximodorsal orientation (or canting) in recent human lateral proximal phalangeal metatarsal facets, especially of digits 2โ4 (PP-2 to PP-4), such that the articular surfaces are oriented largely perpendicular to the resultant joint reaction forces. Given the more proximal position of the MT-5 head and the relative shortness of the fifth proximal phalanx (PP-5) in recent humans, this feature is less pronounced in the fifth MTP articulations.
Because of the difficulty in assigning isolated PP-2s to PP-4s to digit and australopith PP-5s to digit, it is necessary to pool these phalanges for comparaisons. All of the Middle and Late Pleistocene PPs follow the recent human pattern, with the lower articular angles deriving from PP-5s (Fig. 3). The same applies to the Middle Pleistocene Atapuerca-SH sample. The one Early Pleistocene phalanx, likely of Homo (SKX-16699), is among the more recent humans. The australopiths, although they have mostly dorsally oriented facets (in contrast to the plantar orientations of ape facets), exhibit angles that are substantially below those of Homo PPs,overlapping only the low values of some Late Pleistocene PP-5s.
Lateral Proximal Phalanx Lengths and Shafts

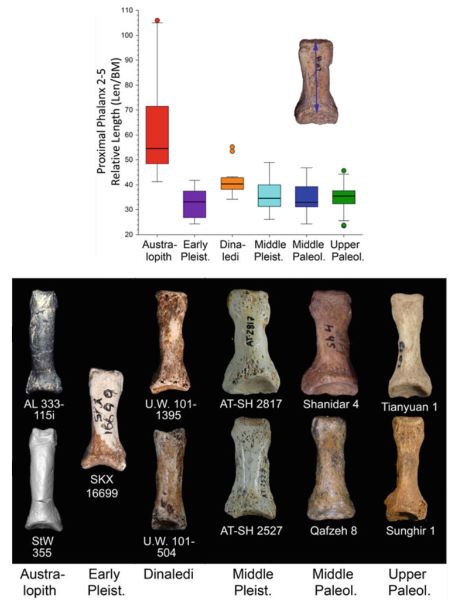

The lateral proximal pedal phalanges have generally uniform articular lengths through the Late Pleistocene and including the Atapuerca-SH Middle Pleistocene sample, with sample median lengths of 23โ25 mm. The SKX-16699 Early Pleistocene Homo phalanx and the Dinaledi ones are shorter, averaging 18โ20 mm in length, given smaller body sizes. However, the australopith ones, although variable, are considerably longer, with a median length of 27โ28 mm, despite their small bodies. When compared to estimated body mass from femoral head diameters (Fig. 4) (by individual for the Late Pleistocene and A.L. 288-1 and by each phalanx to every body mass estimate for the other samples), the Pleistocene Homo samples are very similar. The australopith PPs, with their generally smaller body sizes, are substantially relatively longer (even ignoring the few, probably inappropriate, high ratios). A few of the australopith ratios overlap the Homo ones, and two of the Dinaledi ones are also relatively high. But there is nonetheless a substantial dichotomy between the australopith and Homo relative phalangeal lengths.
The longer australopith proximal phalanges are associated with a suite of related diaphyseal features that contrast with those of later Homo (Figs. 3 and 4). The Homo phalanges exhibit largely dorsally straight diaphyses, ovoid-shaped midshafts and small flexor sheath ridges located on the medial and lateral midshafts (although the Dinaledi and SKX-16699 PPs have slight dorsal convexities). The australopith phalanges are distinctly curved on their dorsal margins. They have prominent flexor sheath crests that are on the medioplantar and lateroplantar diaphysis along the distal halves of the shafts. The sizes and positions of these flexor sheaths are a product of having more curved diaphysis and hence greater plantarly directed forces on the sheaths, likely arising from the stronger contraction of the long pedal digital flexor muscles. These specific features cause the midshafts to appear semicircular in cross-sectional shape. The phalanges are also mediolaterally expanded more distally, giving the diaphysis a proximally waisted appearance in dorsal view. However assessed, the australopith lateral proximal pedal phalanges imply some degree of prehension, albeit markedly less than the much longer ones of the great apes.
Proximal Pedal Phalanx Diaphyseal Hypertrophy

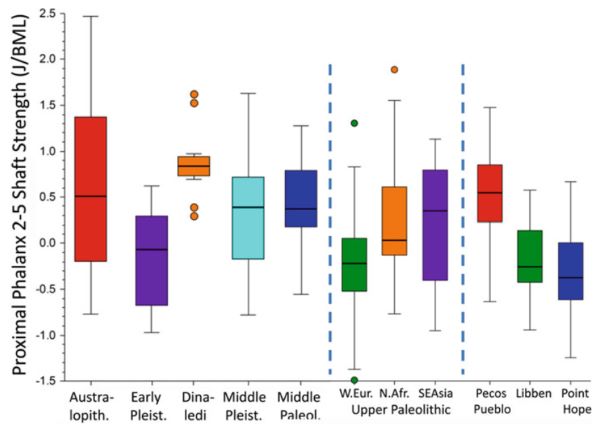

It is also possible to assess the relative degrees of hypertrophy, or robustness, of the lateral pedal phalanges, again pooling those from digits 2 to 5 and comparing those phalanges without an individually associated body mass to the range of body masses available for the appropriate sample (Fig. 5). To maximize sample sizes, midshaft polar moments of area are estimated from the diaphyseal diameters using ellipse formulae, and they are scaled using articular length times estimated body mass. The resultant values (Fig. 5) provide a large range for the australopiths, low values for the Early Pleistocene SKX-16699, higher values for the Dinaledi sample and intermediate and similar ranges for the Middle Pleistocene and Middle Paleolithic samples. Given the extensive overlap of these samples and the necessity to associate almost all of the pre-Middle Paleolithic ones by sample rather than by individual,there is probably little significance in the variations across these fossil samples.
In the assessment of the Upper Paleolithic phalanges, however, there is substantial interregional variation. The western Eurasian sample has relatively gracile phalanges, whereas the North African and especially the Southeast Asian one have more robust phalanges. In contrast, there is little difference across these samples in overall lower limb robustness. If these three samples are compared to ecogeographically separate Native American prehistoric samples, however, a pattern emerges. Across the Native American samples, the habitually unshod Pecos Pueblo (New Mexico) sample has robust phalanges, similar to Middle Pleistocene and Middle Paleolithic ones. The habitually shod Inuit Point Hope (Alaska) sample has relatively gracile ones, similar to the western Eurasian Upper Paleolithic sample. And the geographically intermediate Libben (northern Ohio) sample is modestly less gracile. Given that these three samples of Native Americans were similarly robust in their lower limbs, the variation in lateral pedal phalangeal hypertrophy reflects the degrees to which their lateral toes were protected by differences in the habitual use of footwear. If the framework from these Native Americans is then applied to the Upper Paleolithic samples, the inference is that the western Eurasian sample was habitually shod, the Southeast Asian one was often barefoot and the North African sample was intermediate but closer to the Southeast Asian one in the use of protective foot wear.
Implications for Pliocene and Pleistocene Footprints
The tarsometatarsal configurations of all of these Pliocene and Pleistocene pedal remains are therefore basically similar to those of recent humans, despite minor variations in size, proportions, articular details and musculoligamentous hypertrophy. They therefore imply that the primary forms of the footprints attributed to australopiths or members of the genus Homo should be similar. Given the high degree of variation in unshod footprint form within and across individuals among recent humans, due to normal ranges of pedal size and proportions, the variation in digital separation, degrees of toeing out during walking and variable pedal arch height, overlain by idiosyncratic variation in walking patterns, terrain and (of course) substrate characteristics, all of these hominins should have made footprints which were generally similar.
The areas of functional contrast in the pedal remains involve the digits. The australopiths and (to varying degrees) initial Homo digital remains indicate greater hallucal mobility and/or lateral forces on the hallux, a lack of hallux valgus (hence little toeing out), longer lateral phalanges and lateral phalanges which were less dorsiflexed in the later stages of the stance phase. The expectation would therefore be that australopith footprints, relative to those of later Homo, would exhibit normal human heel, arch and ball imprints, but that they would contrast in having less toeing out of the print (or more anteroposterior orientation of the footprint) and especially distally extended and deeper impressions from the lateral toes.
The one axis of variation among later Pleistocene humans is the reduction in lateral phalangeal robustness among the western Eurasian Upper Paleolithic humans and to a lesser extent among the North African ones. Especially compared to the Middle Pleistocene and the Middle Paleolithic samples, the implication is that there was a marked increase in the use of protective foot wear among these Upper Paleolithic human populations. Paleolithic footwear is not known, although at least one sample (the early Upper Paleolithic Sunghir one from northern Russia) exhibits both body decoration implying leggings/boots and extremely gracile lateral phalanges, indicating their habitual use of protective boots. Interestingly, almost all of the footprints known from Upper Paleolithic Eurasia are of unshod people, whether of children or adults. Were these people more often barefoot than their pedal phalanges and their cold temperate to glacial environments imply? Were they removing footwear to walk more securely in the karstic systems in which the footprints are primarily found? Or is there a bias in our footprint sample, such that the distinctively human barefoot ones are readily recognized, but the more amorphous ones that would be created by soft boots remain unrecorded?
References
- DeSilva, J., McNutt, E., Benoit, J., & Zipfel, B. (2019). One small step: A review of Plio-Pleistocene hominin foot evolution. American Journal of Physical Anthropology, 168(S67),63โ140. https://doi.org/10.1002/ajpa.23750.
- Fernรกndez, P. J., Mongle, C. S., Leakey, L., Proctor, D. J., Orr, C. M., Patel, B. A., et al. (2018). Evolution and function of the hominin forefoot. Proceedings of the National Academy of Sciences USA, 115, 8746โ8751. https://doi.org/10.1073/pnas.1800818115.
- Harcourt-Smith, W. E. H., Throckmorton, Z., Congdon, K. A., Zipfel, B., Deane, A. S., Drapeau, M. S. M., et al. (2015). The foot of Homo naledi. Nature Communications, 6, 8432. https://doi.org/10.1038/ncomms9432.
- Latimer, B. L., Lovejoy, C. O., Johanson, D. C., & Coppens, Y. (1982). Hominid tarsal, metatarsal, and phalangeal bones recovered from the Hadar Formation: 1974โ1977 collections. American Journal of Physical Anthropology, 57, 701โ719.
- Lordkipanidze, D., Jashashvili, T., Vekua, A., Ponce de Leรณn, M. S., Zollikofer, C. P. E., Rightmire, G. P., et al. (2007). Postcranial evidence from early Homo from Dmanisi, Georgia. Nature, 449, 305โ310.
- McNutt, E. J., Zipfel, B., & DeSilva, J. M. (2018). The evolution of the human foot. Evolutionary Anthropology, 27, 197โ217. https://doi.org/10.1002/evan.21713.
- Pablos, A., Pantoja, A., Martรญnez, I., Lorenzo, C., & Arsuaga, J. L. (2017). Metric and morphological analysis of the foot in the Middle Pleistocene sample of Sima de los Huesos (Sierra de Atapuerca, Burgos, Spain). Quaternary International, 433A, 103โ113. https://doi.org/10.1016/j.quaint.2015.08.044.
- Susman, R. L. (1983). Evolution of the human foot: Evidence from Plio-Pleistocene hominids. Foot and Ankle, 3, 365โ376. https://doi.org/10.1177/107110078300300605.
- Trinkaus, E. (1983). Functional aspects of Neandertal pedal remains. Foot and Ankle, 3, 377โ390.
- Trinkaus, E. (2005). Anatomical evidence for the antiquity of human footwear use. Journal of Archaeological Science, 32, 1515โ1526. https://doi.org/10.1016/j.jas.2005.04.006.
- Trinkaus, E., & Patel, B. A. (2016). An Early Pleistocene human pedal phalanx from Swartkrans, SKX 16699, and the antiquity of the human lateral forefoot. Comptes Rendus Palevol, 15, 978โ987. https://doi.org/10.1016/j.crpv.2016.07.003.
- Trinkaus, E., Buzhilova, A. P., Mednikova, M. B., & Dobrovolskaya, M. V. (2014). The people of Sunghir: Burials, bodies and behavior in the earlier Upper Paleolithic. New York: Oxford University Press.
- Trinkaus, E., Wojtal, P., Wilczyลski, J., Sรกzelovรก, S., & Svoboda, J. (2017). Palmar, patellar and pedal human remains from Pavlov. Paleo Anthropology, 2017, 73โ101. https://doi.org/10.4207/pa.2017.art106.
- Ward, C. V. (2013). Postural and locomotor adaptations of Australopithecus species. In K. E. Reed, J. G. Fleagle, & R. E. Leakey (Eds.), The paleobiology of Australopithecus (pp. 235โ245). New York: Springer. https://doi.org/10.1007/978-94-007-5919-0_16.
- Zipfel, B., DeSilva, J. M., Kidd, R. S., Carlson, K. J., Churchill, S. E., & Berger, L. R. (2011). The foot and ankle of Australopithecus sediba. Science, 333, 1417โ1420. https://doi.org/10.1126/science.1202703.
Chapter 7 (121-132) from Reading Prehistoric Human Tracks: Methods & Material, edited by Andreas Pastoors and Tilman Lenssen-Erz (Spring, 02.26.2021), published by OAPEN under the terms of a Creative Commons Attribution 4.0 International license.
